How to Upgrade Your Diesel Engine

This guide outlines professional-grade strategies for diesel engine upgrades, tailored to meet the demands of today’s heavy-duty applications.

Why Upgrade a Diesel Engine?

Diesel engines are built tough—but that doesn’t mean they can’t be improved. Fleet operators and owner-operators alike seek upgrades for three main reasons:

• Power and torque
• Improved fuel efficiency
• Better reliability

Upgrading your diesel engine isn’t always about pushing limits. In fact, it often means optimizing existing systems for your specific workload and environment.

Key Diesel Engine Upgrades

ECM Tuning

The Engine Control Module (ECM) controls fuel injection timing, air-fuel ratios, turbocharger behavior, and more. Upgrading your ECM with a custom tune can dramatically improve horsepower and torque output.

Types of ECM tunes:

• Performance Tune: Prioritizes power. Ideal for heavy towing and high-output applications.
• Economy Tune: Reduces fuel consumption, especially useful for long-haul fleets.
• Emissions-Compliant Tune: Balances performance with regulatory compliance.

Caution is key here. A poorly executed ECM tune can lead to engine damage, void warranties, or violate local emission laws.

Turbocharger Upgrade

A turbo upgrade increases the volume of air forced into the combustion chamber, enabling more fuel to be burned and more power to be generated.

Common options include:

• Variable Geometry Turbos (VGT): Provide better boost control across RPM ranges.
• High-Flow Turbochargers: Deliver more power but may reduce low-end torque.

It’s crucial to match your upgraded turbo with fueling and exhaust systems to prevent bottlenecks.

Fuel Injector Upgrades

High-performance injectors deliver more diesel per injection cycle, which is necessary for supporting bigger turbos or higher ECM tuning levels.

However, oversized injectors without tuning adjustments may lead to:

• Poor fuel economy
• Unstable idling
• Excessive exhaust smoke

Professional calibration is a must to keep your air-to-fuel ratio in check.

Exhaust and Aftertreatment Improvements

Exhaust flow plays a significant role in performance. Upgrades here may include:

• High-flow exhaust manifolds
• Larger diameter exhaust systems
• Performance Diesel Particulate Filters (DPFs)

If your truck operates in an emissions-regulated area, ensure all components remain compliant with local laws.

Air Intake Systems

A performance cold air intake system allows cooler, denser air into the combustion chamber, resulting in a more efficient burn.

Benefits include:

• Increased horsepower
• Lower Exhaust Gas Temperatures (EGTs)
• Better throttle response

Make sure the intake is properly sealed and includes a quality air filter to protect internal components.

Upgraded Intercooler

The intercooler cools the compressed air from the turbo before it enters the engine. A more efficient unit reduces intake air temperatures, helping maintain power under load and reducing thermal stress on internal parts.

This is especially beneficial in:

• Towing scenarios
• Mountain driving
• Hot climates

Lubrication and Cooling System Enhancements

High-performance engines generate more heat and stress. Consider:

• High-capacity oil coolers
• Synthetic oil upgrades
• Heavy-duty radiators

These upgrades help mitigate wear, especially under sustained high-RPM or towing conditions.

Supporting Component Considerations

Transmission

Your transmission must be capable of handling any additional torque and horsepower. For many operators, a torque converter upgrade or even a complete heavy-duty transmission build is essential to complement engine enhancements.

Driveline

Excess torque can strain:

• Driveshafts
• Differentials
• Axle shafts

Inspect these components and upgrade them if you're significantly increasing power output.

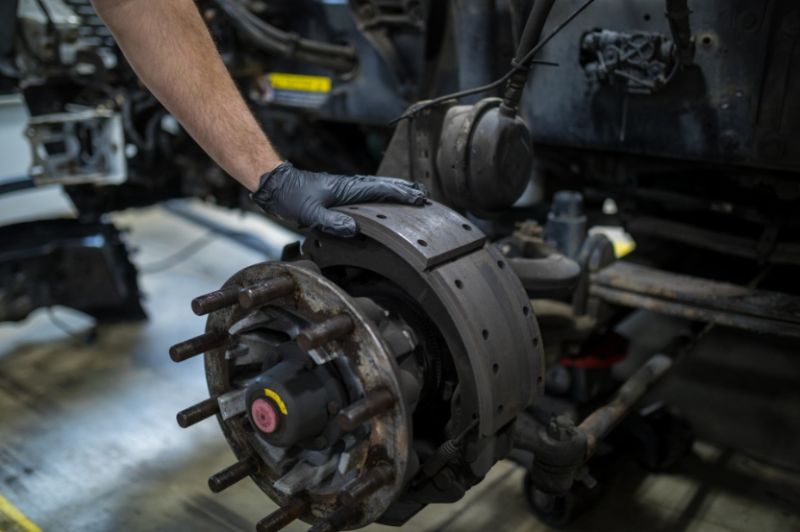

Brake System

Upgraded power means increased stopping demands. High-performance brake shoes, larger drums or rotors, and even air system enhancements (compressors and reservoirs) should be considered.

Suspension

Heavier components and increased speed/load capacity may require a suspension upgrade—especially for load balance and rebound control. Air suspension systems can be fine-tuned for both comfort and performance.

Professional Calibration Is Key

Every diesel engine is different—what works for one setup may be catastrophic for another. That’s why professional calibration and dyno testing are not optional steps. They ensure:

• Safe engine operation
• Regulatory compliance
• Optimal fuel-air ratios
• Component longevity

Practical Advice Before You Start

1. Know your engine platform. Understand what upgrades it can handle.
2. Start with a plan. Don’t mix and match parts haphazardly.
3. Factor in downtime. Some upgrades require significant install time.
4. Check your warranty. Many upgrades, especially ECM tuning, may void OEM coverage.
5. Follow a maintenance schedule. Increased power often means more frequent service intervals.

Upgrade Your Diesel Engine Today

Upgrading your diesel engine is a serious commitment—but when done right, it pays dividends in performance, efficiency, and uptime. From ECM tuning to turbochargers and intercoolers, every component must work in harmony.

If you require ECM tuning services in Atlanta, GA, reach out to Status Truck and Trailer Repair today.
